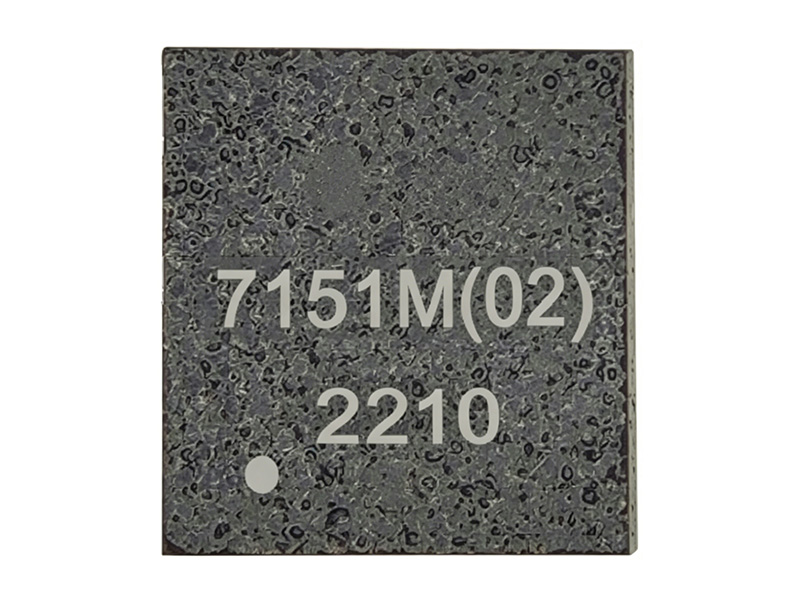

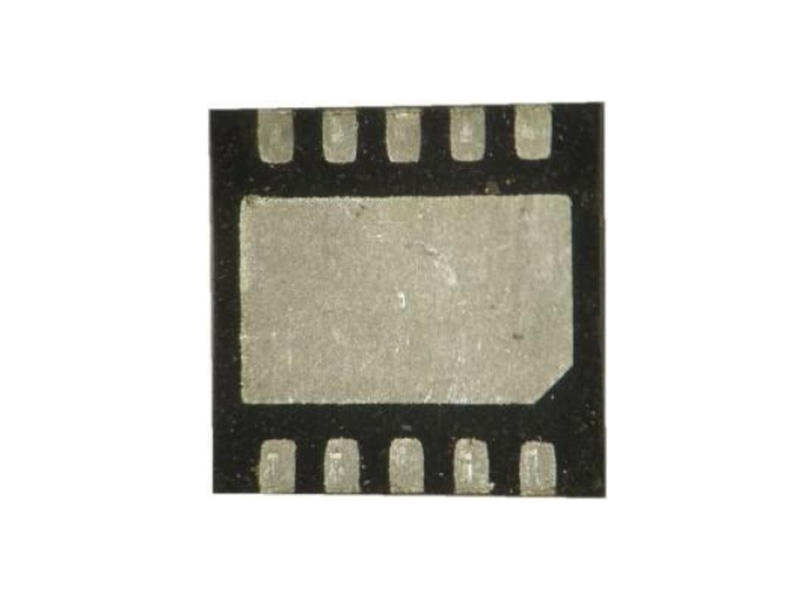

An LDO die is the bare semiconductor chip (die) of a low-dropout linear voltage regulator, without packaged housing. It integrates reference voltage, error amplifier, pass transistor and protection circuits on a single silicon wafer. It outputs a stable, noise-free DC lower voltage by linear regulation, with no switching ripple.
Application Scope：
1.High-precision analog circuits,ADC/DAC,clock modules requiring ultra-low noise power supply.
2.Wearable devices,Bluetooth modules,portable consumer electronics with small current power rails.
3.Smartphone,tablet and IoT internal power management chip embedded use.
4.Custom power module,COB packaging,multi-chip hybrid circuit integrated design.
5.Scenarios sensitive to switching ripple,requiring simple peripheral circuit and low cost.
