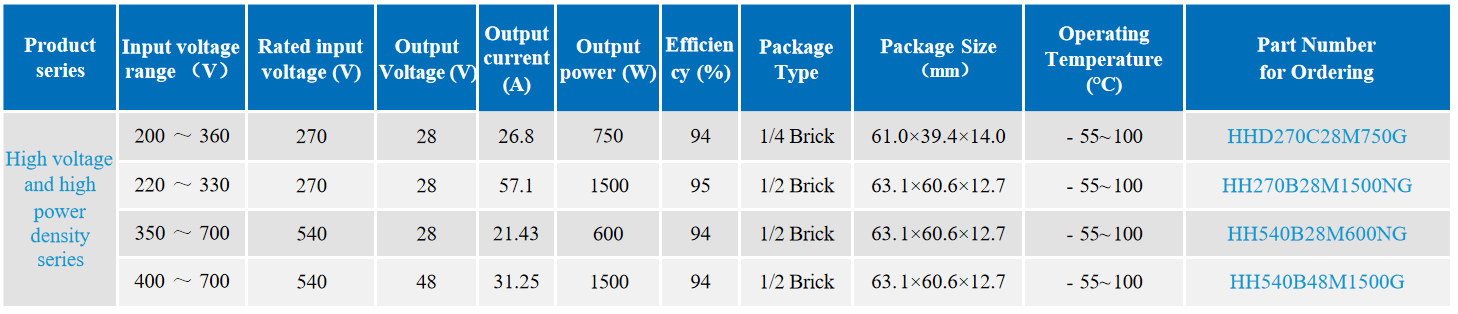

High Voltage High Power Density Brick Series refers to a series of industry-standard isolated DC-DC power modules with brick-style package form factors, such as full brick, half brick, 1/4 brick, 1/8 brick and 1/16 brick.
It is designed for high voltage input, high output power and ultra-high power density power conversion applications.
Key Features：
1.Wide high voltage input range,supporting 380 Vdc to 850 Vdc bus voltage.
2.Extremely high power density,compact size with high output power.
3.High conversion efficiency up to 92%–95%,low power loss under full load.
4.High isolation voltage,excellent insulation and anti-interference performance.
5.Fully encapsulated structure,wide operating temperature range,shock and vibration resistance.
6.Built-in comprehensive protections:over voltage,under voltage,over current,short circuit and over temperature protection.
7.Standard pin and footprint compatibility,easy replacement and system design.
8.Support parallel current sharing,hot plug and remote enable/monitoring function.
Application Scope：
1.Data center and telecom high-voltage bus power supply systems.
2.New energy energy storage,photovoltaic power generation and charging pile equipment.
3.Industrial automation,servo drive,robot and high-power industrial control systems.
4.Medical high-power equipment,aerospace and military electronic power systems.
5.Rail transit auxiliary power and new energy vehicle high-voltage electronic control systems.
