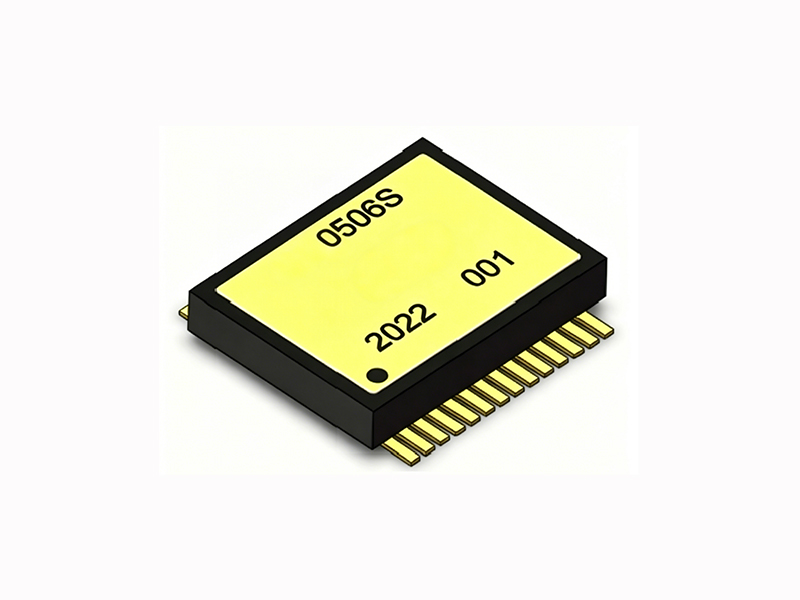

An analog switch chip is a semiconductor device that controls the on/off connection and switching of analog or digital signals. It behaves like a mechanical relay but implemented with solid-state circuitry, enabling signal routing, multiplexing and channel selection in electronic systems.
Key Features：
1.Low on-resistance,minimal signal attenuation when turned on.
2.Near-zero leakage current when turned off,good signal isolation.
3.Wide signal bandwidth,suitable for both low-frequency and high-frequency analog signals.
4.Rail-to-rail signal handling capability,covering full supply voltage range.
5.Fast switching speed,no mechanical bounce compared with relays.
6.Small size,high integration,support multi-channel single-pole/multi-throw configurations.
7.Low power consumption,high reliability and long service life.
Application Scope：
1.Precision data acquisition and multi-channel signal sampling systems.
2.Audio and video signal switching,multimedia equipment.
3.Industrial instrumentation,sensor signal multiplexing.
4.Communication equipment,RF signal path switching.
5.Battery management and portable consumer electronic devices.
6.Medical electronic equipment and precision measurement instruments.
7.Automotive electronics,IoT modules and embedded control systems.
