A Monitor Reset Chip (also called voltage supervisor IC or reset IC) is a dedicated analog integrated circuit that monitors a system’s supply voltage and generates a reset signal when the voltage deviates from predefined thresholds, ensuring reliable operation of digital systems.
Key Features：
1.Precision Voltage Monitoring:Compares VDD against accurate internal reference thresholds(e.g.,2.18V to 4.62V).
2.Reset Signal Generation:Outputs active‑high or active‑low reset to force MCU/FPGA into a safe initial state.
3.Fixed/Adjustable Delay:Holds reset active for 10–200 ms after voltage recovery to ensure stability.
4.Low Power Consumption:Typical Icc<10μA,suitable for battery‑powered devices.
5.Wide Operating Voltage:Works down to 1V,supporting low‑voltage systems.
6.Noise Immunity:Integrated debounce filters reject short glitches to prevent false resets.

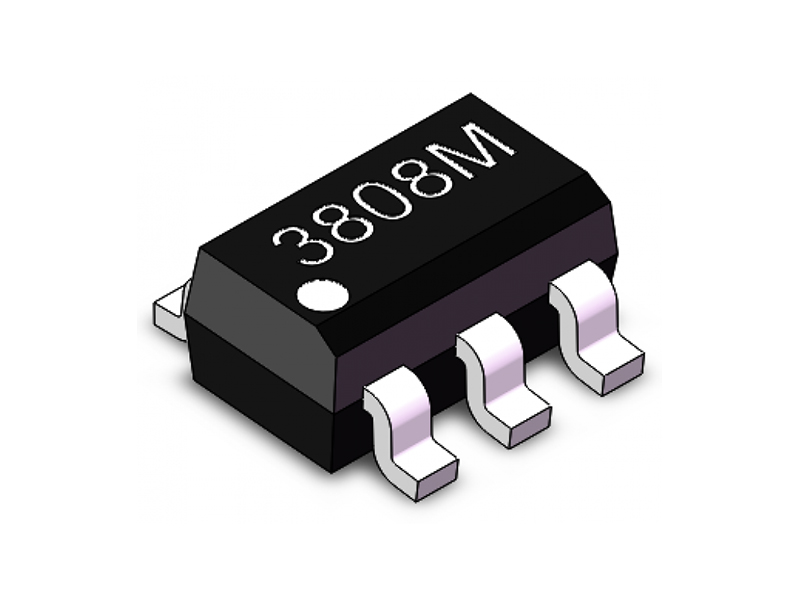

7.Small Package:Available in SOT‑23,SC‑70,or DFN for compact designs.
8.Optional Watchdog:Some models include a watchdog timer for software fault detection.
Application Scope：
1.Embedded Systems:MCU/MPU/DSP/FPGA power supply supervision.
2.Consumer Electronics:Smartphones,tablets,wearables,and IoT devices.
3.Industrial Control:PLCs,sensors,and factory automation equipment.
4.Automotive Electronics:Engine control units,body modules,and infotainment systems.
5.Communication Infrastructure:Routers,switches,and base stations.
6.Medical Devices:Portable monitors and diagnostic equipment.
7.Data Storage:SSDs,HDDs,and memory modules to prevent data corruption.
